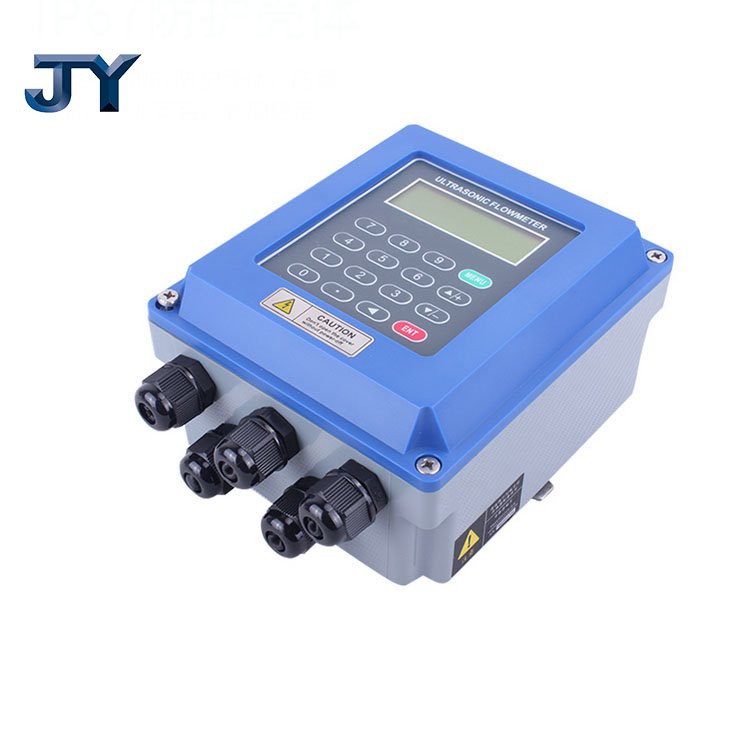

Tuf-2000B wall mounted ultrasonic water flow meter are widely used in tap water, heating, water conservancy, metallurgy, chemical, machinery, energy and other industries. It can be used for production monitoring, flow verification, and flow comparison. It is an indispensable tool for flow monitoring.

Introduce :

The host can be installed on the wall, instrument box, distribution box, and the protection level can reach IP67.

According to different calibers, different types of transmitter models can be selected, using calibers from DN15 to DN6000

Wall Mounted Ultrasonic Flow Meter

* ultrasonic water flow meter , Both intrusive and non-intrusive measurement are achieved.
* Easy installation process, no maintenance is needed.
* Multiple output of 4-20mA, OCT pulse and relay output.
* Achieve heat measurement by connecting 3-wired heat transducers PT100.
* Without SD card ( standard ) ,With SD card ( Optional )

Parameters working environment




Protection level






-20 to 60℃

-30 to 160℃

Basic parameters



Flow rate range

0-±10m/s,Forward and reverse measurement

Pipe size

DN15 to DN6000

Liquid type

Water ,sea water ,sewage water ,beer ,oil Single homogeneous liquid that can conduct ultrasonic waves

Pipe material

Steel, stainless steel, cast iron, PVC, aluminum, FRP and other dense pipelines

Signal output

1 channel 4-20Ma current output, impedance 0-1K, accuracy 0.1%
1 channel OCT pulse output, pulse width 6-1000ms
1 relay output

Signal input

3 channels 4-20Ma current input, can be used as data collector
Connect three-wire PT100 platinum resistance, support Modbus protocol

Communication Interface

Isolated RS485 serial interface, supports Modbus protocol

data storage

SD card regularly stores the set parameters and measurement results (optional)

Power supply

DC8-36V or AC85-264V

Details of the ultrasonic water flow meter

1.SMT automatic : chip circuit high quality ,high performance ,very low maintenance rate .

2.ABS  Electricity air interface : No aging cracking , waterproof / dust proof high performance .

3.LCD back , Convenient meter reading ,including instantaneous flow and cumulative flow value ,etc .

4.Water-proof grade case :IP67 housing ,anti-corrosive and moisture proof ,outdoor installation ,long time stability .

Installation location
1.The ultrasonic flow sensor installation should avoid the above and below,To avoid the sediment or bubbles;
2.The requirement of installa the flow sensor is must have enough straight pipeine,al least,to ensure 10DN upsteam pipeline and 5DN downsteam pipeline;
3.To ensure the pipeline is fulled by medium and temperature of pipe;
4.To choose the clear pipeline to installa the ultrasonic flow sensor.
