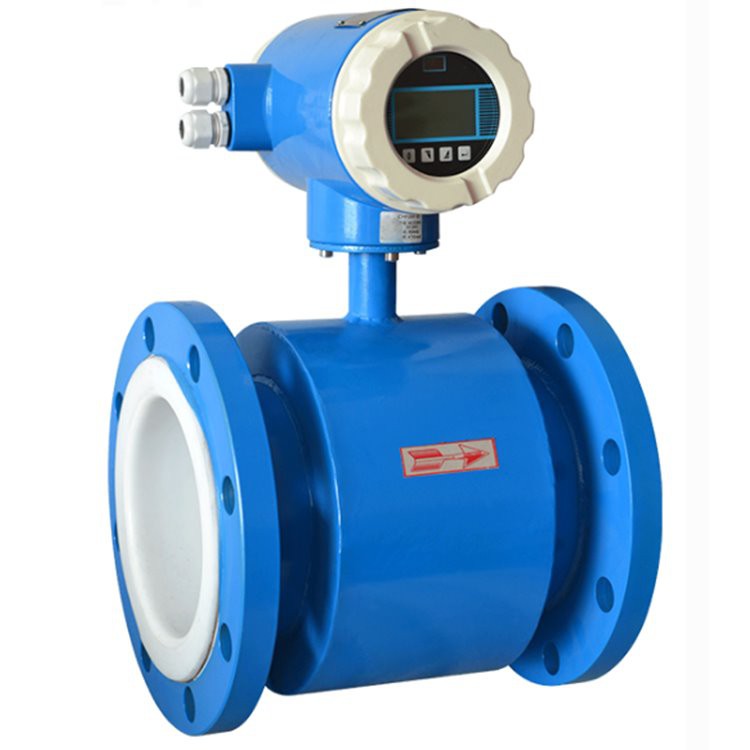

Slurry Flow Meter

Slurry Flow Meter

Milk Flow Meter



LDE series Emf milk flow meter Emf is suitable for measuring the volumetric flow of conductive liquid and slurry in closed pipelines.such as water, chilled water ,hot water ,sewage, mud, slurry,milk, acid, alkali, salt liquid and food slurry .It is widely used in mining, petrochemical,metallurgy, coal, water conservancy, water supply and drainage, sewage treatment and other industries

Milk flow meter Feathers :
1. JYLDE electromagnetic flowmeter is suitable for all sanitary media. For conductivity tests with a flow rate greater than 5, changes in conductivity do not affect the stability of the flowmeter.
2. Use the world’s best integrated circuit to eliminate the influence of the excitation switch, and use the excitation current compensation method to finally achieve the best stability of the product.
3. The flowmeter has no mechanical and moving parts, and no maintenance is required.
4. Since the lining and electrode are in contact with the measured medium, they have good corrosion resistance and wear resistance, so they have a wide range of applications.
5. When measuring oily mixed media (conductive) or a medium covered with a layer of conductive material on the electrode surface, you can choose a switchable (frosted) electrode.
6. The flowmeter has long-term stable high-precision measurement. It is not affected by the physical properties of the fluid. The measurement accuracy can be up to 0.2%.
7. With high efficiency and high stability, a wide input range of multiple sets of isolated switching power supplies is designed.


Advantage :

1.Self-checking function

2.High definition LED display

3.16-Bit embedded microprocessor

4.Ultra-low EMI Switching power supply

5.Using international advanced single Chip microcomputer

Working Conditions

Ambient temperature

-20- 55C

Ambient humidity

5% – 95%

Power supply

AC220V±10%

Operating power

<10 W

Maximum working temperature

70–140C

Application:
It is widely used for the measurements of acid , alkali, Salt solution , water , sewage,corrosive liquids, and fluid flow of mod ,pulp , etc .

Types of efm flow meter

Milk Flow Meter

Parameter

Flow measurement range and range ratio

Display range ratio 1:150, precision range ratio Leve0.3 1:4, Leve0.5 1:10, Leve1.0 1:20

Velocity range

≤15m/s

Dielectric conductivity

≥5μs/cm

Accuracy

0.2%,0.5%

Medium temperature

-20℃~60℃,-20℃~90℃,-20℃~100℃,-20℃~180℃

Material

Carbon steel , 304 or 316 stainless steel

Flange connection Way

Flange connection , Tri-clamp , thread ,wafer

pressure

1.6,2.5,6.4,16,26,42Mpa

Using the environment

The temperature -20℃~+50℃ Humidity≤85%,Air pressure 86kpa~106kpa

The output signal

Frequency output 0-5KHz Voltage output 1-5v
Current output 4 ~ 20mA,Rs-485 serial interface or RS232 interface,Mudbus agreement Hart protocol

The power supply

external power supply 220VAC±15%; external power supply 24VDC±5%(optional)Lithium battery power supply

Power consumption

≤15w(external power supply)

Protection grade

IP67,IP68

The lining material

Polyurethane rubber, neoprene, ptfe, F46, etc

Electrode materials

316L, hastelloy HB, hastelloy HC, titanium, platinum, etc

Special electrode material

Such as: titanium, tantalum, platinum and other rare metal materials

The installation type

The whole body,Separate body, Insertion type

Explosion-proof grade

ExmdibIIBT4

Selection of lining material

Lining material

The main performance

The scope of application

PTFE

1.The most stable chemical properties of plastics in a material that is resistant to boiling hydrochloric acid,sulfuric acid and aqua regia,but also resistant to concentrated acids and various organic solvents, intolerance chlorine trifluoride, liquid oxygen, high velocity liquid oxygen, ozone corrosion.

2.Poor wear resistance

Concentrated acid,alkali and other corrosive media

PFA

Corrosion resistance with PTEF,strong anti-negative pressure

Can be used for negative pressure state

F46

1.Corrosion resistance with PTEF.

2Can withstand low wear and tear.

3,Strong anti-negative pressure.

With PTFE 2.Can be used for low abrasive media

Neoprene

1.Have excellent flexibility,a high degree of tensile force,good wear resistance.

2.Resistant to the general low concentrated acid, alkali,salt medium corrosion, corrosion resistant to oxidizing media.

Water, sewage, weakly abrasive mud, pulp

Polyurethane

1.Has excellent wear resistance (equivalent to 10 times the natural rubber).

2 acid, alkali performance is poor.

3.Do not use water mixed with organic solvents.

Strong neutral wear pulp, coal slurry, mud and so on



Flow Range

Flow rate—-flow comparison table

202104261347597a2a08d637f54843be90f4c7fb6a4981

0.01

1

2

3

4

5

15

15

0.0064

0.6362

1.2723

1.9085

2.5447

3.1809

9.5426

20

0.0113

1.1310

2.2619

3.3929

4.5239

5.6549

16.9646

25

0.0177

1.7671

3.5343

5.3014

7.0686

8.8357

26.5072

40

0.0452

4.5239

9.0478

13.5717

18.0956

22.6195

67.8584

50

0.0707

7.0686

14.1372

21.2058

28.2743

35.3429

106.0288

65

0.1195

11.9459

23.8919

35.8377

47.7836

59.7295

179.1886

80

0.1810

18.0956

36.1911

54.2867

72.3823

90.4779

271.4336

100

0.2827

28.2743

56.5487

84.8230

113.0973

141.3717

424.1150

150

0.6362

63.6173

127.2345

190.8518

254.4690

318.0863

954.2588

200

1.1310

113.0973

226.1947

339.2920

452.3893

565.4846

1696.4600

300

2.5447

254.4690

508.9380

763.4070

1017.8760

1272.3450

3817.0351

350

3.4636

346.3606

692.7212

1039.0818

1385.4424

1731.8030

5195.4089

400

4.5239

452.3893

904.7787

1357.1680

1809.5574

2261.9467

6785.8401

450

5.7256

572.5553

1145.1105

1717.6658

2290.2210

2862.7763

8588.3289

500

7.0686

706.8583

1413.7167

2120.5750

2827.4334

3534.2917

10602.8752

600

10.1788

1017.8760

2035.7520

3053.6281

4071.5041

5089.3801

15268.1403

700

13.8544

1385.4424

2770.8847

4156.3271

5541.7694

6927.2118

20781.6354

800

18.0956

1809.5574

3619.1147

5428.6721

7238.2295

9047.7868

27143.3605

900

22.9022

2290.2210

4580.4421

6870.6631

9160.8842

11451.1050

34353.3157

1000

28.2743

2827.4334

5654.8668

8482.3002

11309.7336

14137.1669

42411.5008

1200

40.7150

4071.5041

8143.0082

12214.5122

16286.0163

20357.5204

61072.5612

1400

55.4177

5541.7694

11083.5389

16625.3083

22167.0778

27708.8472

83126.5416

1600

72.3823

7238.2295

14476.4589

21714.6884

28952.9179

36191.1474

108573.4421

1800

91.6088

9160.8842

18321.7684

27482.6525

36643.5367

45804.4209

137413.2627

2000

113.0973

11309.7336

22619.4671

33929.2007

45238.9342

56548.6678

169646.0033

FAQ
Q: How about the quality of the magnetic flow meter .

A: We have ISO , CE , Atex , we can send you our certification test of ours to your company.
Q:Could we visit your factory .
A: Yes , sure . If you need , we will help you to visit our factory .
Q: Does your company offer other products besides mag flow meters?
A:Turbine flow meter , vortex flow meter , ultrasonic flow meter , orifice flow meter etc .
Q:Could you provide me the shortest lead time ?
A: We have materials in stock now . If it is the regular model ,that is in stock,
