Methanol Flow Meter

Methanol Flow Meter

Methanol Flow Meter

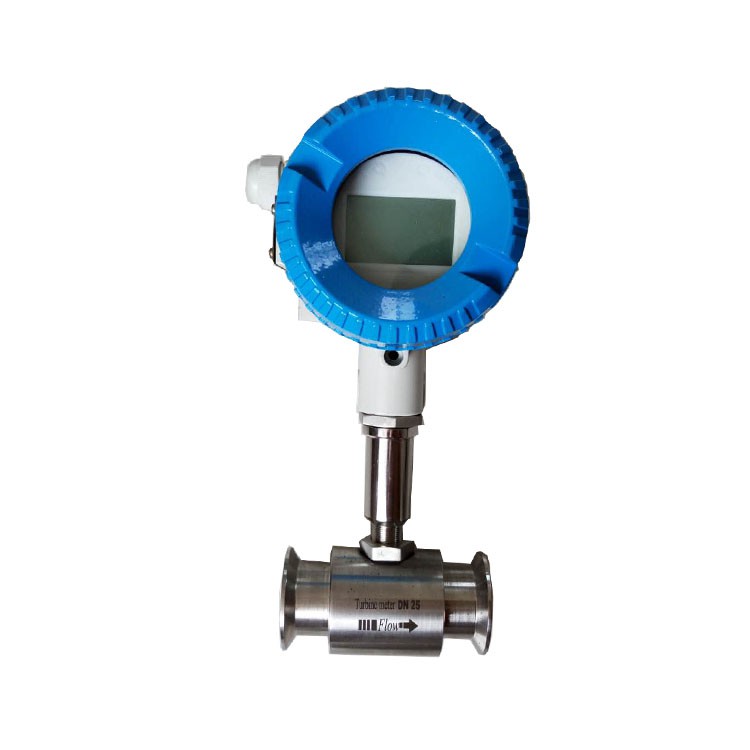

Methanol turbine flow meter is a volume measuring turbine type of Impeller Flow meters , made up of Sensor and transmitter. It can be widely used in the fields of chemical industry,petrol, metallurgy, scientific research.


Application
1. Suitable for even liquid media such as tap water, softened water, drinking water, fruit juice, beverage, beer, milk, etc.
2. Suitable for fuel oil, diesel, gasoline, vegetable oil, heat transfer oil, edible oil and non-corrosive solvents.

Advantages:
1) Output mode: pulse output, 4-20mA output, 485 communication (optional)
2) Accuracy: 0.5%
3) Among all flow meters, obtain high-precision flow meters at low cost;
4) The structure is simple and durable, easy to install and maintain
5) Connection mode: flange connection, thread connection, clamp connection
6) Power supply mode: 24VDC, 12VDC, battery power supply
7) Turbine flowmeter can operate in a wide range of temperature and pressure


Technical parameter

Diameter (mm)

Standard flow range (m³/h)

Extended flow range (m³/h)

Extended flow range (m³/h)

Conventional pressure (Mpa)

DN4

0.04-0.25

0.04-0.4

Thread

6.3

DN6

0.1-0.6

0.06-0.6

Thread

6.3

DN10

0.2-1.2

0.15-1.5

Thread

6.3

DN15

0.6-6

0.4-8

Thread/Flange

2.5/6.3

DN20

0.8-8

0.45-9

Thread/Flange

2.5/6.3

DN25

1-10

0.5-10

Thread/Flange

2.5/6.3

DN32

1.5-15

0.8-15

Thread/Flange

2.5/6.3

DN40

2-20

1-20

Thread/Flange

2.5/6.3

DN50

4-40

2-40

Flange

2.5

DN65

7-70

4-70

Flange

2.5

DN80

10-100

5-100

Flange

2.5

DN100

20-200

10-200

Flange

1.6

DN125

25-250

13-250

Flange

1.6

DN150

30-300

15-300

Flange

1.6

DN200

80-800

40-800

Flange

1.6

Methanol turbine flow meter types

Methanol Flow Meter

How to choose the right turbine flowmeter?

1. Measuring medium?

2. What is the flow range? And pipe diameter?

3. What is the work pressure? What is the working temperature?

4. How to connect?

5. Do you need to display it?

6. What type of output do you need?

Certificate

Certificate

Factory

factory

factory

Methanol Flow Meter factory
