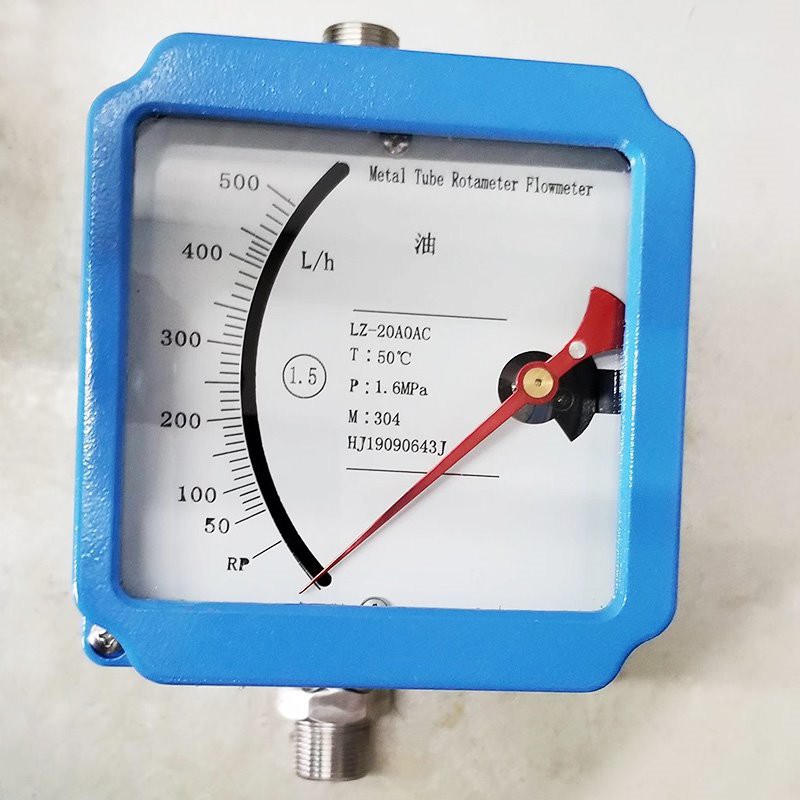

Metal Rotor Flowmeter
Metal Rotor Flowmeter
Feathers:
Metal Rotor Flowmeter adopts all metal structure, which is strong and stable. Also, it has a short stroke and uses small structure design and low pressure loss design.
The new magnetic coupling structure design ensures that the transmission signal is more stable.
Magnetic filter can be installed according to user requirements.
Used for gas and liquid measurement in various industries, the measurement part can be made of different materials to adapt to different media conditions.
It is suitable for harsh environments and severely corrosive media, with good heat resistance and pressure resistance.
Intelligent two-line LCD display, optional on-site instantaneous/accumulated flow display, and backlight.
Optional two-wire system, battery, AC power supply mode.
Product name | Metal tube flowmeter, rotameter, Metal Rotor Flowmeter |
Measure range | Gas 0.03 to 4000m3/h ; liquid 1-200000l/h |
Pipe size | DN15 —–DN200 |
Working temperature | Standard type -80℃ to +200℃ Anti-corrosion type 0℃ to 85℃ |
Work pressure | 1.6—-25MPa (according to the caliber) |
Accuracy class | Liquid 1.5 class , gas 2.5 class |
Body material | 1Cr18Ni9Ti /304/316 stainless steel |
Float material | 1Cr18Ni9Ti /304/316 stainless steel |
Supply voltage | Pointer type does not need power supply, remote transmission type is 24V power supply |
Signal output | 4-20mA, RS485 ,Hart protocol |
Alarm Output | Upper or lower limit flow alarm |
Applicable medium | Gas ,liquid ,Steam |
Explosion-proof grade | intrinsically safe ExibIICT4/isolated ExdIIBT4 (optional) |
Structure | vertical installation, horizontal installation |
Flow range
Diameter (mm) | Flow range | Pressure loss KPa | Accuracy level | ||||
15 | Water L/h | Air m3/h | Water | Air | |||
Normal temperature type | Anticorrosive | Normal temperature type | ,Anticorrosive | ||||
2.5—25 | 2.5—-25 | 0.07–0.7 | 0.07—0.7 | 6.5 | 7.1 | 1.5 | |
4.0—40 | 4.0—40 | 0.11—1.1 | 0.11—1.1 | 7.2 | |||
3.6—63 | 6.3—63 | 0.18—1.8 | 0.18—1.8 | 6.6 | 7.3 | ||
10—100 | 10—100 | 0.28—2.8 | 0.28—2.8 | 7.5 | |||
16—-160 | 16—160 | 0.4—4.0 | 0.4—4.0 | 6.8 | 8.0 | ||
25—-250 | 25—-250 | 0.7—7.0 | 0.7—-7.0 | 7.2 | 10.8 | ||
40—400 | 40—400 | 1.0—10 | 1.0—-10 | 8.6 | 10.0 | ||
63—630 | ——- | 1.6—16 | ——— | 11.1 | 14.0 | ||
25 | 100—1000 | 63—630 | 3.0—30 | 1.6—-16 | 7.0 | 7.7 | |
160—1600 | 100—1000 | 4.5—45 | 3.0—30 | 8.0 | 8.8 | ||
250—2500 | 160—-1600 | 7.0—-70 | 4.5—-45 | 10.8 | 12.0 | ||
400—4000 | 250—2500 | 11—110 | 7.0—–70 | 15.8 | 19.0 | ||
50 | 630–6300 | 400—4000 | 18—180 | 11—–110 | 8.1 | 8.6 | |
1000—10000 | 630—6300 | 25—-250 | 18—-180 | 11.0 | 10.4 | ||
1600—16000 | 1000—10000 | 40—-400 | 25—-250 | 17.0 | 15.5 | ||
80 | 2500—25000 | 1600—16000 | 60—600 | 40—-400 | 8.1 | 8.0 | |
4000—40000 | 2500–25000 | 100—-1000 | 60—600 | 9.5 | 13.0 | ||
100 | 6300—63000 | 4000—40000 | 200—2000 | 100—-1000 | 10.0 | 11.0 | |
10000—100000 | ——- | 300—-3000 | ——– | ||||
