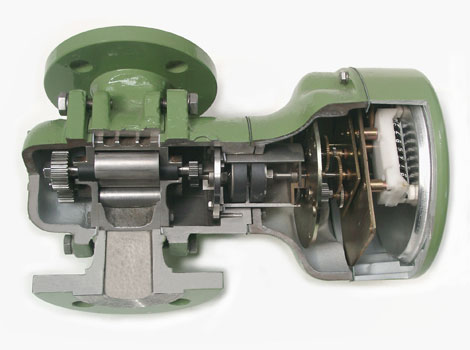

Double Case PD Flowmeters

Flange size 1” ÷ 16” for flow rates from few hundreds of liter/hour to 2000 m3/h;
Max operating pressures till over 150 bar (special versions available on customer request);
Max operating temperatures till over 250 °C (special versions available on customer request);
Max viscosity till 50.000 mPa.s and over (special versions available on customer request);
Excellent Accuracy and Repeatability: Accuracy : ± 0,15% for fiscal applications and  ± 0,5% for general purpose.
Repeatability: ± 0,02%;
Very low pressure drop;
Floating type rotors;
Very reduced maintenance and long service life;
Compact design (no upstream or downstream pipe lengths are necessary);
Wide range of construction materials (cast iron, carbon steel, stainless steel up to AISI 316L, monel, plastic materials, etc..);
Magnetic transmission (alternatively mechanic);
Replacing gear calibrator (alternatively clutch type);
Carbon bearings to support rotors shafts (alternatively ball bearings);
Wide range of reading/remote transmission accessories;
Conformity with International Standards.
