All Stainless Industrial Low Pressure Gauges

All Stainless Industrial Low Pressure Gauges

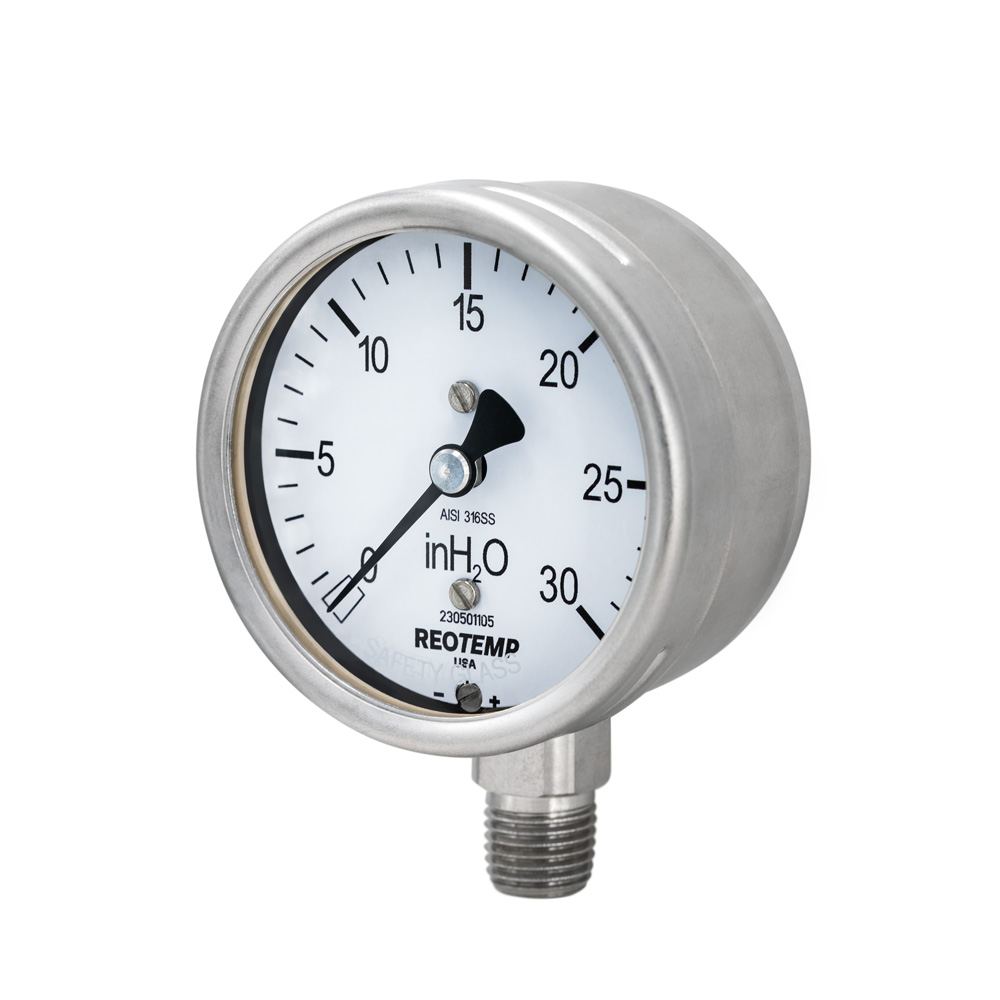

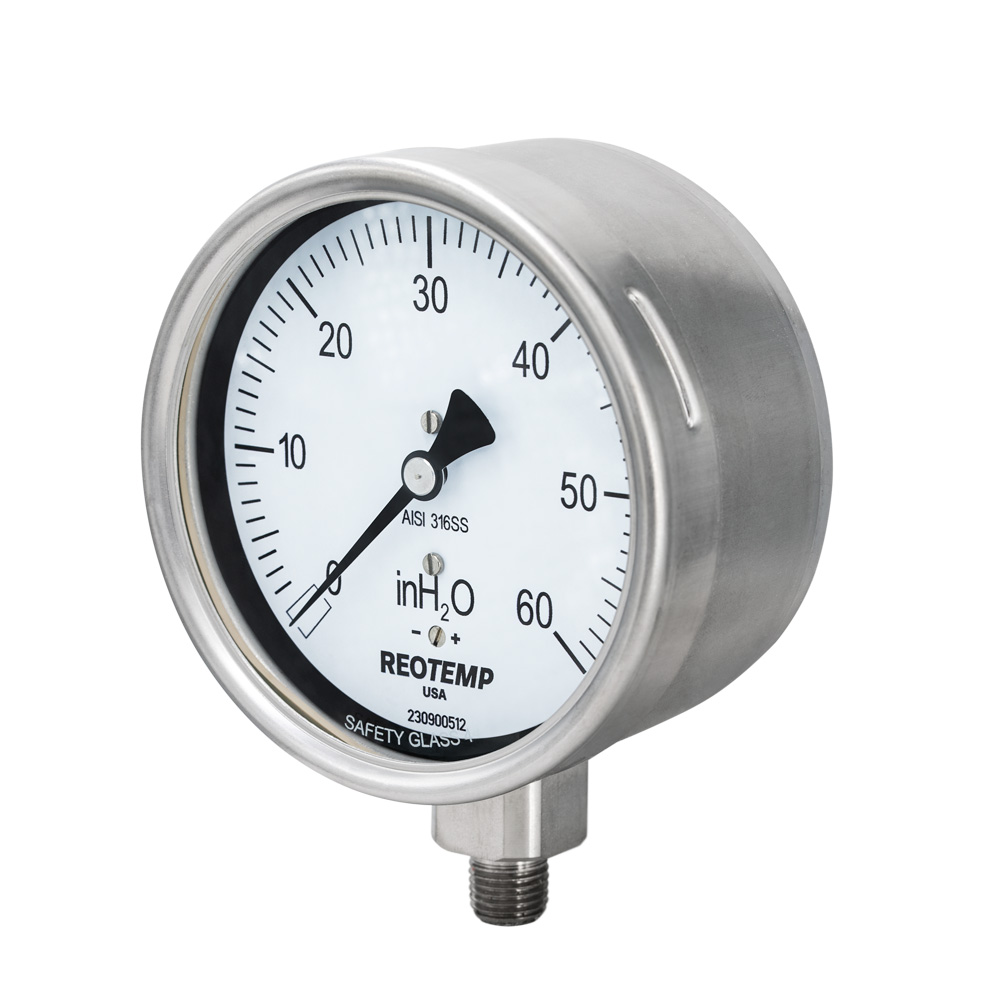

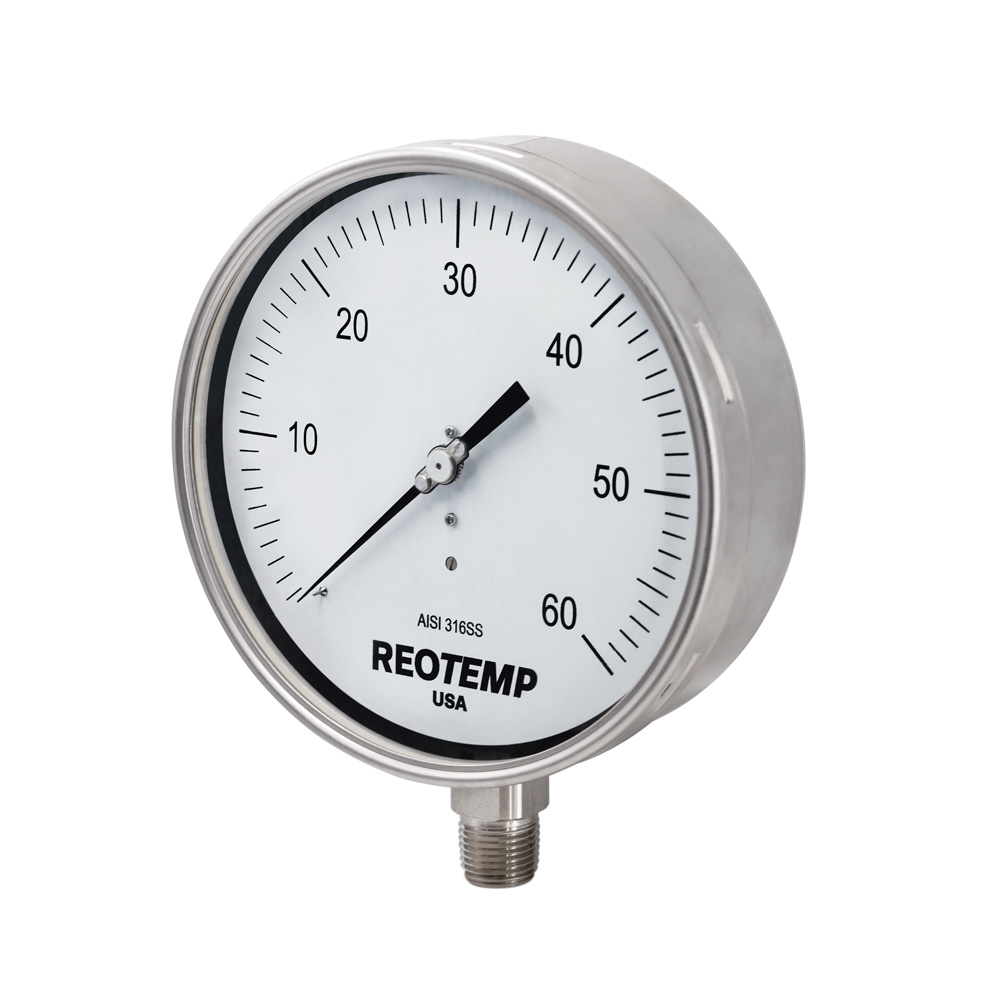

REOTEMP’s Series PCS low pressure gauges offer accurate and reliable measurements of gaseous media. Offered with stainless steel internals, the Series PCS is designed to withstand corrosive media and ensure a long-lasting instrument.

  • Sensitive Diaphragm/Capsule Mechanism
  • All-Welded 316 Stainless Steel Capsule and Socket
  • Easy-Access Zero Reset Screw on Dial
  • NACE MR-0175 and MR-0103 Compliant
  • ASME B40.100 Design


Construction Materials

Non Wetted
Case: 304SS, 316SS Optimal
Ring: 304SS, Bayonet Twist-Off
Dial: White Aluminum, Black Letters

Capsule: 316LSS
Socket: 316SS

1 Piece Socket Attached with Screws; Vented Case

Laminated Safety Glass (Standard), Plastic

Temperature Limits

-40°F to 150°F

-40°F to 200°F

Process When Assembled with a Diaphragm Seal
Direct Mount: -60°F to 350°F
Remote Mount or Cooling Tower: -100°F to 750°F

Accuracy: 1.6% Full Scale, ASME Grade A+

Fillable: Available ≥ 40 in H2O

Restrictor Screw: Available

Max Working Pressure: Stable = 100%, Momentary = 130% of scale

Weight: 2.5” = 0.4 lbs, 4” = 1.3 lbs, 6” = 2.2 lbs, 10″ = 4.41 lbs
